Process videos

Making high quality items is a process. If you’re interested in seeing what goes into making these objects, you’re invited to view the below videos of the process. The videos are not meant to be “explainer” videos or a “how to” series, however if you turn on subtitles there is some commentary included about the “how”

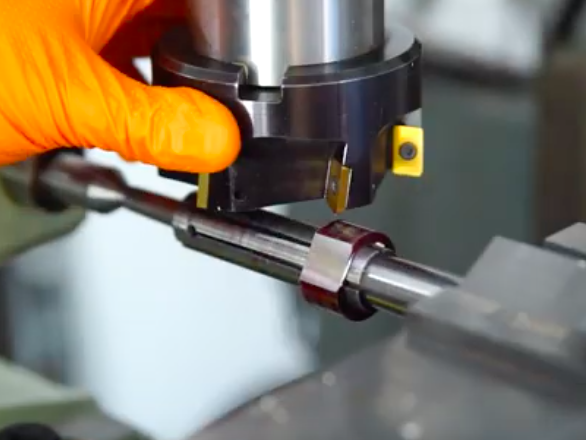

Screen Shot 2019-02-21 at 3.37.49 PM.png

Making of a Hexagon Titanium Damascus ring

This video shows how the hexagon ring is made. it’s a combination of lathe work, manual milling, and careful hand finishing. The process of adding color is unique: Titanium can be heat anodized, which is basically changing the surface coating into a very hard but thin colored layer. In the case of this particular ring, it is a pattern welded rod of titanium damascus, and each different hardness layer anodizes at a slightly different temperature, which creates the pattern, even though the surface shows few hints about the various compositions of the metal within.

Screen Shot 2019-02-21 at 3.51.17 PM.png

Making of the Machinist’s Rocket Lamp

Fair warning: this is an hour long video! But it seeks to document the process of building a unique lamp from scratch. It does not show the CAD design, but shows all the steps in machining a piece from raw materials. Primarily, this work was done on a manual Bridgeport knee mill, but there was also some lathe work and welding. The layout work for this lamp was a bit overkill, but precision in the details brings visual concentricity to the entire assembled unit. This lamp was made in pieces over a several week period a few years ago. This piece resides in a private collection.

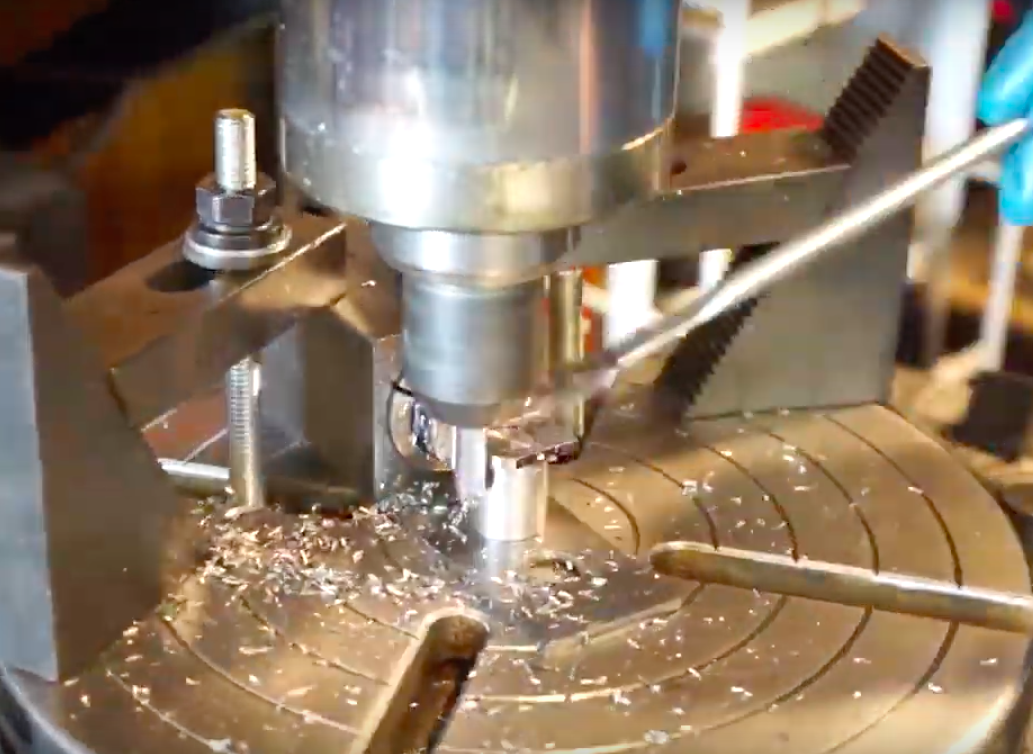

Screen Shot 2019-02-21 at 4.09.46 PM.png

Making the titanium engagement ring

This ring was designed to rework the original platinum engagement ring. Platinum is a fairly soft precious metal, and because of its malleability deforms from regular wear with such a narrow band. The original ring was cast using the “lost wax method” but in this video, a new ring is made from a solid bar in one piece. Primarily the design was roughed out on a manual mill with a rotary table. Not shown in the video was a fair amount of hand clean up finishing and polishing with emory paste.

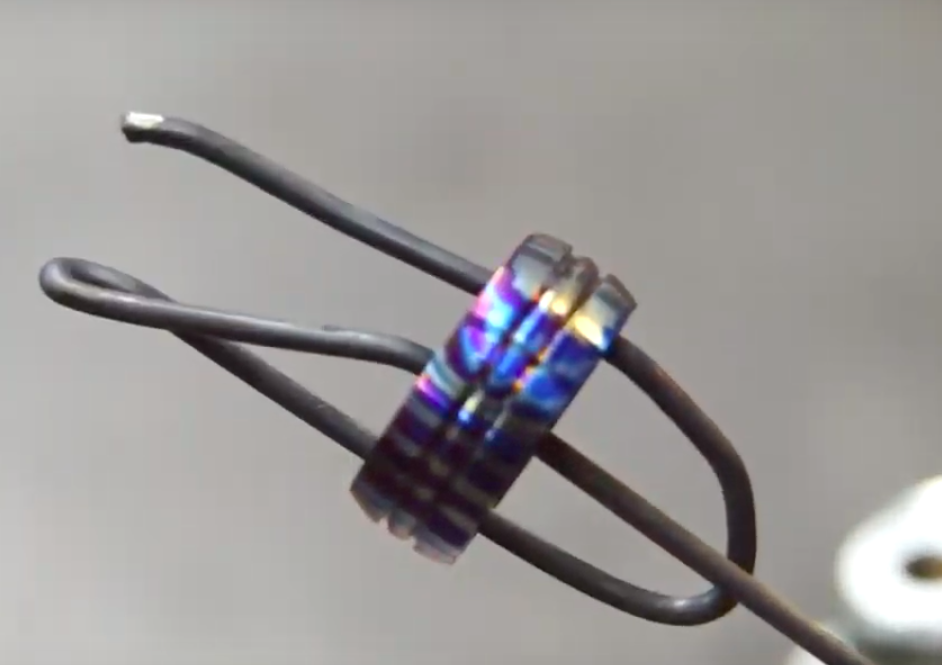

Screen Shot 2019-02-21 at 5.07.43 PM.png

making the titanium Damascus men’s wedding ring

This video follows the creation of a titanium men’s wedding ring. This ring was made with a manual lathe and hand finishing but did not require any CNC work or CAD/CAM design. The finished ring shows the multicolor titanium anodization in the middle band, and inside the ring, with a brushed finish on the outer faces to protect it from wear and scratches.

Screen Shot 2019-02-21 at 5.43.10 PM.png

Making the driver handle from brass and wood

Screwdrivers are a ubiquitous tool in any garage or toolbox. But they are generally very poor quality, and cheap screwdrivers with blunted tips strip screws and generally function poorly. Investing in high quality, fixed blade screwdrivers is expensive, and the whole tool must be replaced when the tip blunts. In the past 20 years, the replaceable bits have become commonplace, but the handles which drive them are generally also under-engineered, and don’t firmly grip the bit in the tool, leading to slippage and scratched work. This driver handle was designed to fix these issues. It grips the bit very securely by means of a set thumbscrew, and has storage in the handle for bits or to “choke up” on long tools. This tool was made mostly on the lathe, with some MDI work on the CNC mill as well.
